cpu.h File Reference

#include <stdlib.h>
#include <string.h>
#include "base.h"
#include "types.h"
#include "util.h"

Include dependency graph for cpu.h:

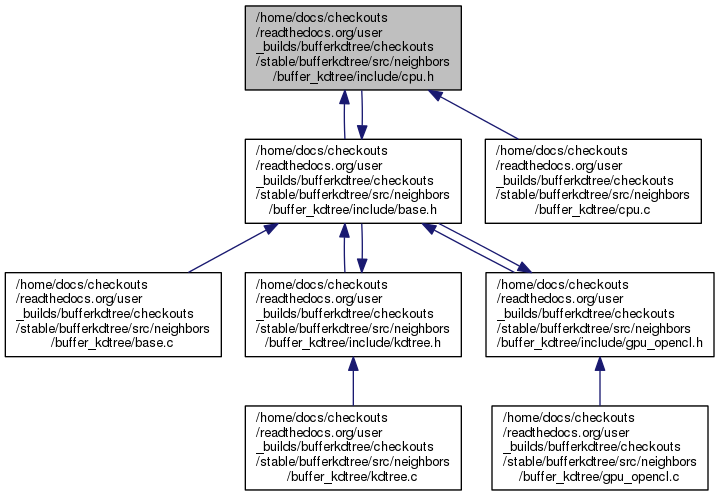

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	init_arrays_cpu (TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	brute_force_leaf_cpu (INT_TYPE fr_idx, INT_TYPE to_idx, FLOAT_TYPE *test_patterns, INT_TYPE ntest_patterns, FLOAT_TYPE *d_min, INT_TYPE *idx_min, TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	process_all_buffers_cpu (TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	do_bruteforce_all_leaves_cpu (INT_TYPE *test_indices_removed_from_all_buffers, INT_TYPE total_number_test_indices_removed, INT_TYPE *fr_indices, INT_TYPE *to_indices, TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	process_queue_via_brute_force_cpu (TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	find_leaf_idx_batch_cpu (INT_TYPE *all_next_indices, INT_TYPE num_all_next_indices, INT_TYPE *ret_vals, TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	get_distances_and_indices_cpu (TREE_RECORD *tree_record, TREE_PARAMETERS *params)
void	write_sorted_training_patterns_cpu (TREE_RECORD *tree_record, TREE_PARAMETERS *params)

Function Documentation

void brute_force_leaf_cpu	(	INT_TYPE	fr_idx,
		INT_TYPE	to_idx,
		FLOAT_TYPE *	test_patterns,
		INT_TYPE	ntest_patterns,
		FLOAT_TYPE *	d_min,
		INT_TYPE *	idx_min,
		TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Brute-force nearest neigbhor search in a leaf of the tree (determined by fr_idx, to_idx, and XI).

Parameters

fr_idx	The "from" index w.r.t. the training indices
to_idx	The "to" index w.r.t. the training indices
*test_patterns	Array of test patterns
ntest_patterns	Number of test patterns
*d_min	Array of distance values that can be updated
*idx_min	Array of indices that can be updated
*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void do_bruteforce_all_leaves_cpu	(	INT_TYPE *	test_indices_removed_from_all_buffers,
		INT_TYPE	total_number_test_indices_removed,
		INT_TYPE *	fr_indices,
		INT_TYPE *	to_indices,
		TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Performs a brute-force in the leaves.

Parameters

*test_indices_removed_from_all_buffers	Array of indices that were removed from all buffers
total_number_test_indices_removed	Number of removed indices
*fr_indices	Array of "from" indices (see paper)
*to_indices	Array of "to" indices (see paper)
*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void find_leaf_idx_batch_cpu	(	INT_TYPE *	all_next_indices,
		INT_TYPE	num_all_next_indices,
		INT_TYPE *	ret_vals,
		TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Finds the next leaf indices for all test patterns indixed by all_next_indices.

Parameters

all_next_indices	Array containing indices to be processed
num_all_next_indices	Number of indices
*ret_vals	For each index, the next leaf buffer that needs to be processed
*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void get_distances_and_indices_cpu	(	TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Copies the arrays dist_min_global and idx_min_global from GPU to CPU Updates the distances and indices (w.r.t the original indices)

Parameters

*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void init_arrays_cpu	(	TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Initializes all arrays.

Parameters

*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void process_all_buffers_cpu	(	TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Processes all buffers on the CPU.

Parameters

*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void process_queue_via_brute_force_cpu	(	TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

If only few elements are left in the queues after the buffers have been emptied, we do a simple brute force step to compute the nearest neighbors.

Parameters

*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void write_sorted_training_patterns_cpu	(	TREE_RECORD *	tree_record,
		TREE_PARAMETERS *	params
	)

Writes the training patterns in a specific ordering.

Parameters

*tree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters
