base.h File Reference

#include <stdlib.h>
#include <math.h>
#include <stdio.h>
#include <omp.h>
#include "global.h"
#include "util.h"
#include "kdtree.h"

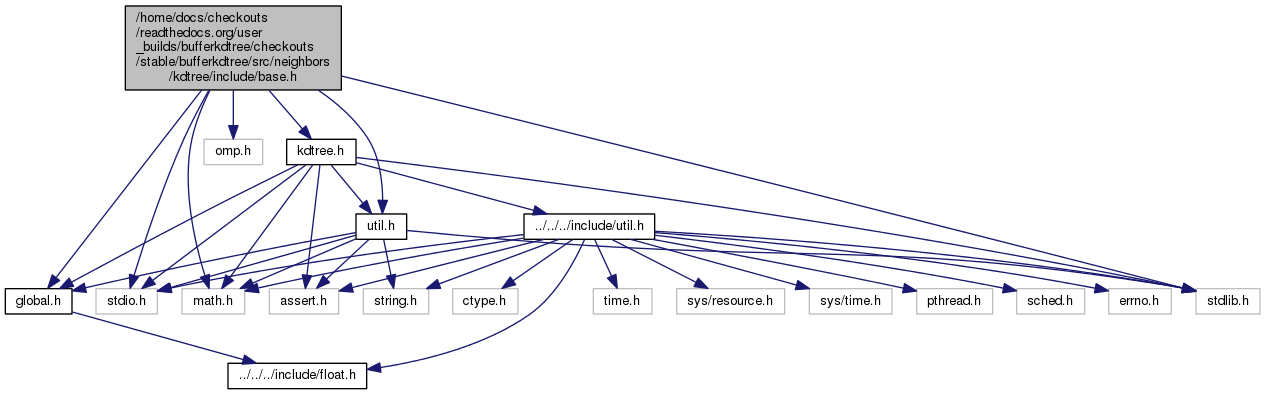

Include dependency graph for base.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	init_extern (int n_neighbors, int tree_depth, int num_threads, int splitting_type, int verbosity_level, KD_TREE_PARAMETERS *params)
void	fit_extern (FLOAT_TYPE *Xtrain, int nXtrain, int dXtrain, KD_TREE_RECORD *kdtree_record, KD_TREE_PARAMETERS *params)
void	neighbors_extern (FLOAT_TYPE *Xtest, int nXtest, int dXtest, FLOAT_TYPE *distances, int ndistances, int ddistances, int *indices, int nindices, int dindices, KD_TREE_RECORD *kdtree_record, KD_TREE_PARAMETERS *params)
void	free_resources_extern (void)

Function Documentation

void fit_extern	(	FLOAT_TYPE *	Xtrain,
		int	nXtrain,
		int	dXtrain,
		KD_TREE_RECORD *	kdtree_record,
		KD_TREE_PARAMETERS *	params
	)

Builds a k-d-tree

Parameters

*Xtrain	Pointer to array of type "FLOAT_TYPE" (either "float" or "double")
nXtrain	Number of rows in *X (i.e., points/patterns)
dXtrain	Number of columns in *X (one column per point/pattern)
*kdtree_record	Pointer to struct instance storing the model
*params	Pointer to struct instance storing all model parameters

void free_resources_extern

(

void

)

Frees resources

void init_extern	(	int	n_neighbors,
		int	tree_depth,
		int	num_threads,
		int	splitting_type,
		int	verbosity_level,
		KD_TREE_PARAMETERS *	params
	)

Initializes the *params struct with the parameters provided.

Parameters

n_neighbors	The number of nearest neighbors to be found
tree_depth	The tree depth of the tree to be built
num_threads	The number of threads that should be used
splitting_type	The splitting type that can be used during the construction of the tree
verbosity_level	The verbosity level (0==no output, 1==more output, 2==...)
*params	Pointer to struct that is used to store all parameters

void neighbors_extern	(	FLOAT_TYPE *	Xtest,
		int	nXtest,
		int	dXtest,
		FLOAT_TYPE *	distances,
		int	ndistances,
		int	ddistances,
		int *	indices,
		int	nindices,
		int	dindices,
		KD_TREE_RECORD *	kdtree_record,
		KD_TREE_PARAMETERS *	params
	)

Interface (extern): Computes the k nearest neighbors for a given set of test points stored in *Xtest and stores the results in two arrays *distances and *indices.

Parameters

*Xtest	Pointer to the set of query/test points (stored as FLOAT_TYPE)
nXtest	The number of query points
dXtest	The dimension of each query point
*distances	The distances array (FLOAT_TYPE) used to store the computed distances
ndistances	The number of query points
ddistances	The number of distance values for each query point
*indices	Pointer to arrray storing the indices of the k nearest neighbors for each query point
nindices	The number of query points
dindices	The number of indices comptued for each query point
*kdtree_record	Pointer to struct storing all relevant information for model
*params	Pointer to struct containing all relevant parameters
